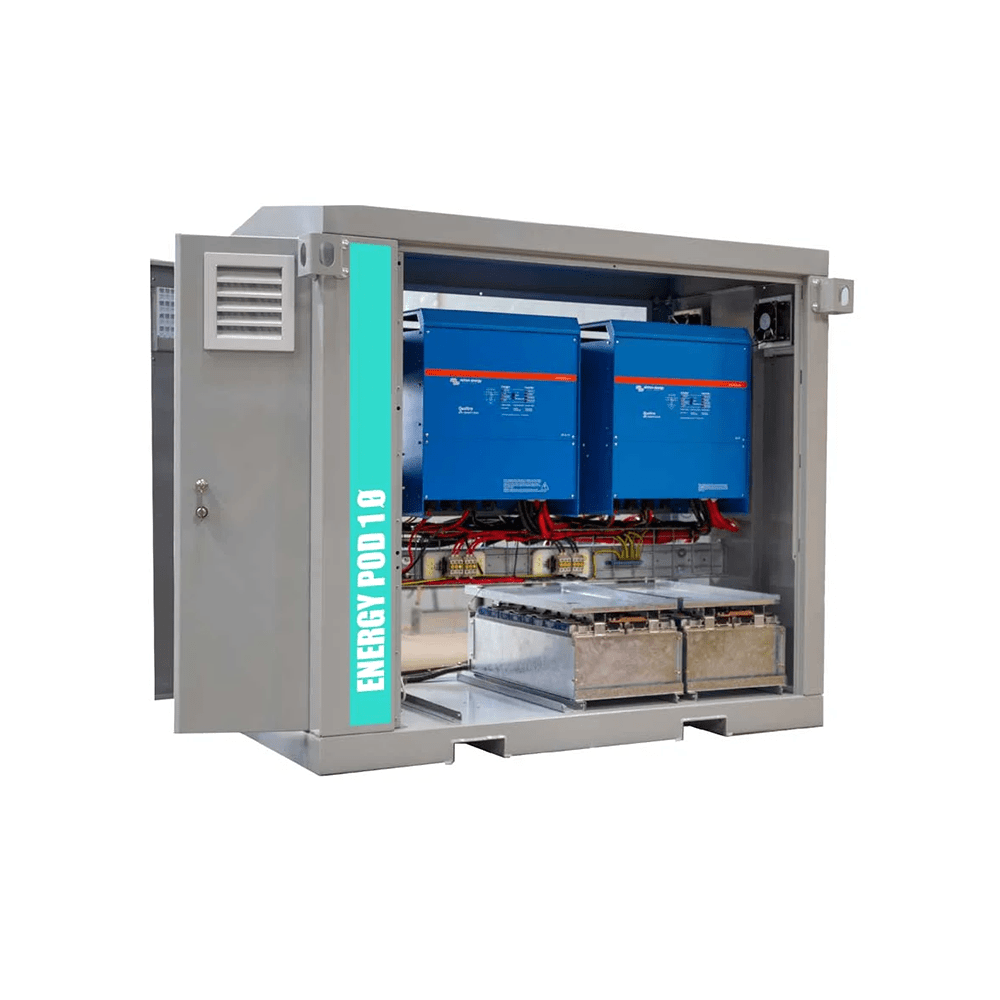

Combining photovoltaic (PV) energy generation with prime lithium iron phosphate storage cells and low frequency Victron inverters, the Energydock Energy Pod is swift to deploy and requires minimal space. It can function as a standalone energy service, a grid-supported system, or a grid-assisted service. Each Energy Pod is remotely managed and programmed to meet specific energy requirements.
Developed and manufactured in South Africa, the Energy Pod is available in a standard range of single phase units (15kVA, 20kVA and 30kVA) and three phase units (15kVA, 24kVA, 30kVA and 45kVA), equipped with low frequency Victron inverters and modular battery storage. The Energy Pod can also be custom designed and built to support specific energy requirements and load profiles.
The Energy Pod draws energy from various sources like nearby solar panels, high-voltage DC distribution lines, generators, or limited grid supply. The system intelligently stores or distributes energy based on programmed priorities.
The optional PV Add-On kits offer a complete PV solution, including solar panels and all the required equipment and protection, which will be installed inside the Energy Pod before it leaves the factory. The panel mounting framework and cables are, however, excluded as these are site specific.
ADDITIONAL COMPONENTS AND FEATURES
- Security alarm for unauthorized entry into Energy Pod.
- Temperature control with automatic cooling functions.
- Easy AC IN and AC OUT connections.
- All required DC cabling, fusing and surge protection.
- AC circuit breaker for incoming and outgoing AC.
- Emergency shutdown on AC and DC.
- Three phase bypass switch AC1/AC2.
- Full colour display touch screen.
- Internal modem for wifi communication (excluding SIM card).
